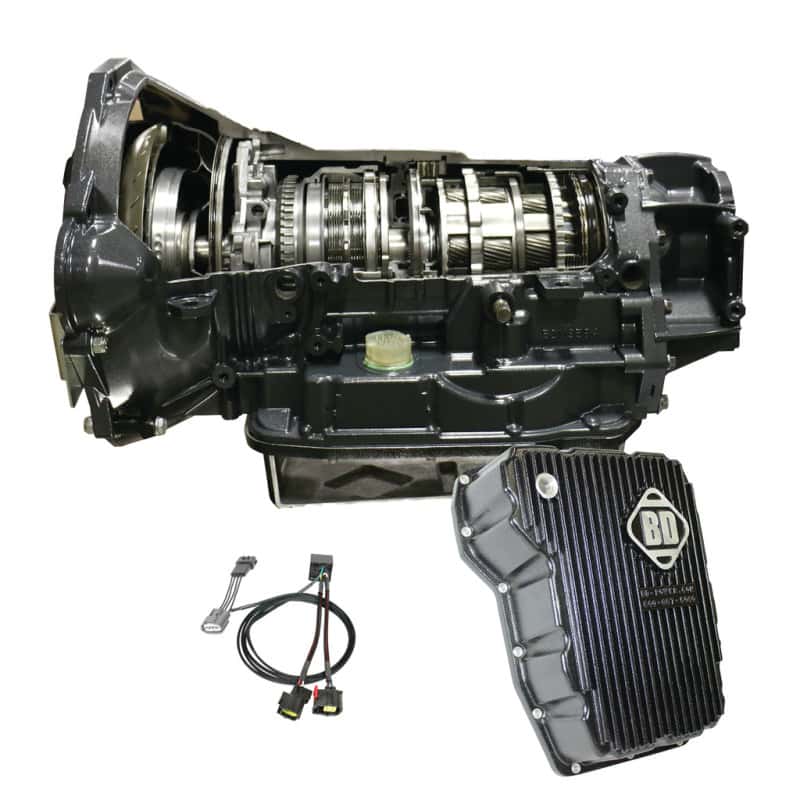

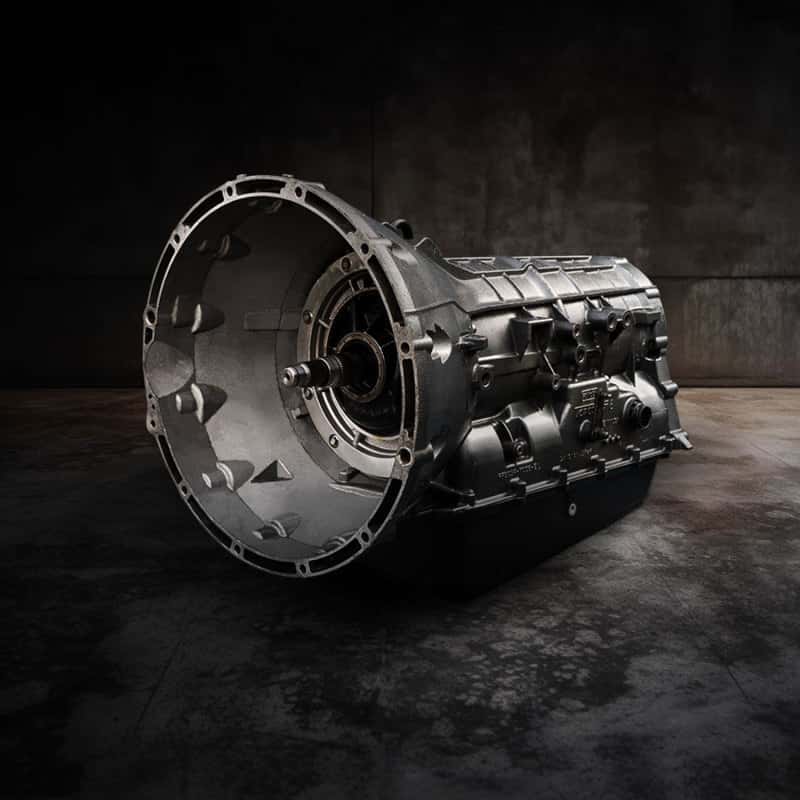

BD Diesel Transmission - 2007.5-2017 Dodge 68RFE 4WD TRANSMISSION STAGE 4 Auto Trans Assembly

Overview

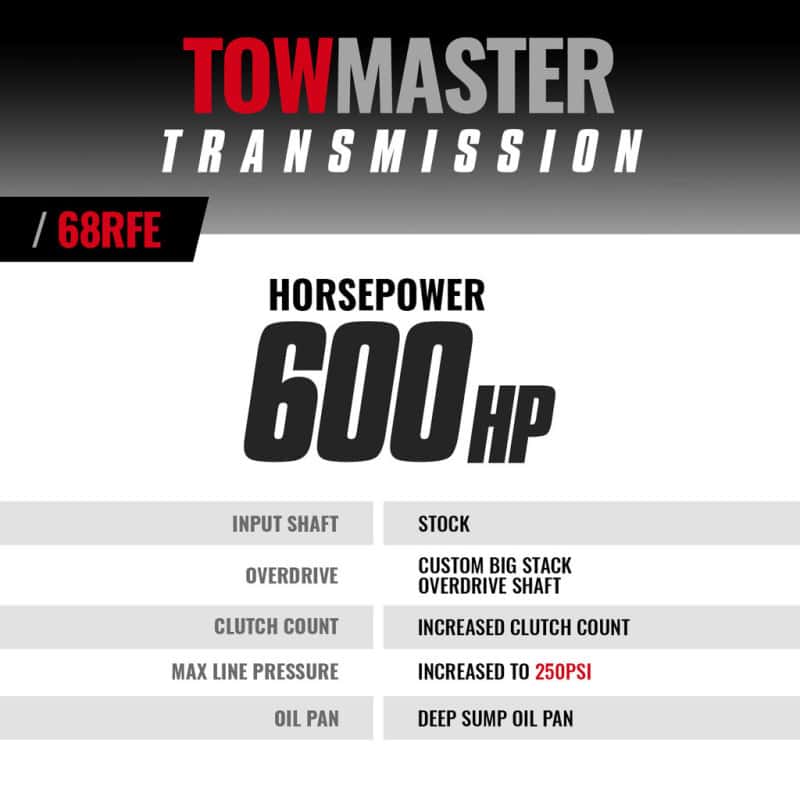

Hard anodized valve body and new solenoid pack installed in every unit; Custom valve body separator plate with gaskets increases line pressure while stopping internal cross leaks; Heavy duty cam & roller design low reverse one way clutch; New 4C billet spring retainer; Steel girdle added to 2C piston to allow for more clutches and broader apply area; BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum; Clutch count increased to hold high torque level - Over Drive 17% increase, Under Drive 20%, 2C 33% increase; BD reinforced accumulator plate; TCC limit valve machined and sleeved to address high wear area with in pump; BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex; BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required

Features

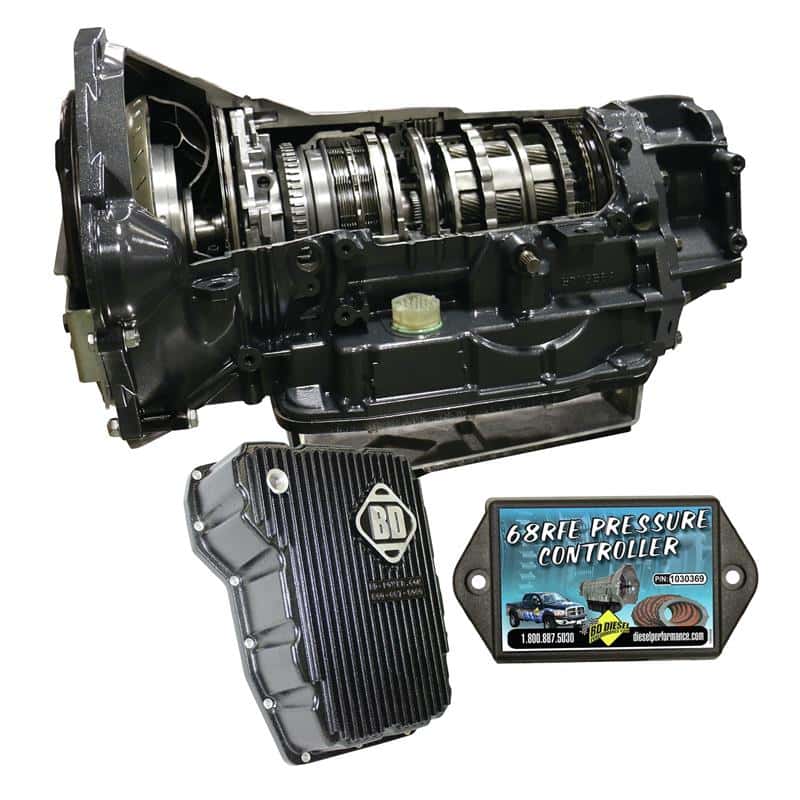

• BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
• Steel girdle added to 2C piston to allow for more clutches and broader apply area
• TCC limit valve machined and sleeved to address high wear area with in pump
• Hard anodized valve body and new solenoid pack installed in every unit
• Heavy Duty Cam And Roller Design Low Reverse One Way Clutch
• Over Drive clutches 33% increase & 2C clutches 33% increase
• Heavy duty cam & roller design low reverse one way clutch
• Valve Body Separator Plate Stops Internal Cross Leaks
• QT100 Pressure Plates For Increased Clutch Counts
• 36 Month/150000 Mile Limited Warranty
• Custom Big Stack overdrive shaft
• BD reinforced accumulator plate
• New 4C billet spring retainer
• No Race Abuse Covered
