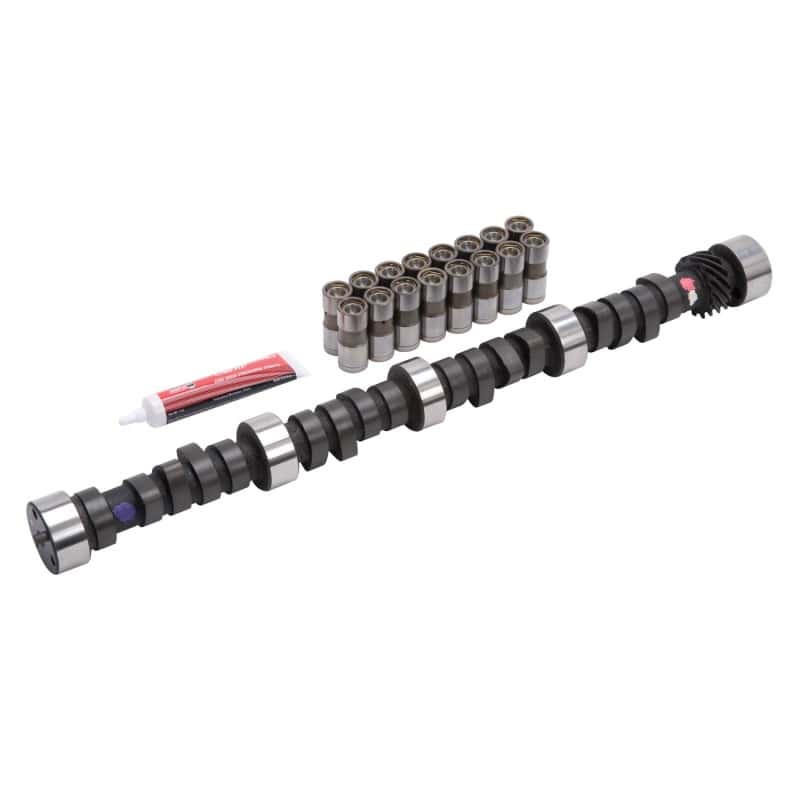

Edelbrock — Edelbrock Perf Plus Cam and Lifters Kit Chev 305-350 Tbi and Lg-4
CAMSHAFTS

1 / 9

Engine Components

Edelbrock

Edelbrock Perf Plus Cam and Lifters Kit Chev 305-350 Tbi and Lg-4 CAMSHAFTS

Name: Edelbrock Perf Plus Cam and Lifters Kit Chev 305-350 Tbi and Lg-4 CAMSHAFTS
Brand: Edelbrock
SKU: ede3702
Price: 322.95 USD
Availability: InStock

SKU: ede3702

Installation manual

Warranty: https://d32vzsop7y1h3k.cloudfront.net/a94f98a6cca627bead20d256b78521ca.PDF

$322.95

In Stock

Usually ships within 1-3 business days — Free shipping over $199

Overview

Edelbrock part #3702 Performer-Plus camshaft is designed for small-block Chevy 305-350 T.B.I & LG-4 V-8 applications. This Edelbrock cam kit produced 245 ft-lbs. of torque when used with #3701 intake and stock iron cylinder heads on a 350 engine. The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions. Camshaft Specifications: - Duration @ .050 Intake: 194 degrees - Duration @ .050 Exhaust: 214 degrees - Lift @ Valve Intake: .398" - Lift @ Valve Exhaust: .442" - Lobe Separation: 112 Degrees - Intake Centerline: 107 Degrees - Idle Vacuum @ 1000 RPM's: 16"

Features

Take the Guesswork Out of Camshaft Selection!

Performer-Plus Camshaft Kit for 1976-95 Small-Block Chevrolet Performer-Plus Camshaft Kit

Installation (catalog file)

Files & media

Vehicle Fitment

1 vehicle

Confirmed fitments across 1 make and 247 configurations. Expand a vehicle for year-range, trim, and engine details.

Unknown —247 fits

—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: 1990: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I · 1991: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh · 1992: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: 1987: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh · 1988: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I · 1989: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I · 1990: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I · 1991: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I · 1992: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I · 1993: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I · 1994: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: 1990: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh · 1991: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh · 1992: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I · 1993: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh · 1994: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh · 1995: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: 1988: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh · 1989: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh · 1990: Non Roller Applications~ 50 State Legal Hyd.; Off-Idle-5500rpm; Adv. Dur. 244deg. Int/264deg. Exh; Valve Lift 0.398 Int/
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: 1982: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh · 1983: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh · 1991: Non Roller Applications~ 50 State Legal Hyd.; Off-Idle-5500rpm; Adv. Dur. 244deg. Int/264deg. Exh; Valve Lift 0.398 Int/ · 1992: Non Roller Applications~ 50 State Legal Hyd.; Off-Idle-5500rpm; Adv. Dur. 244deg. Int/264deg. Exh; Valve Lift 0.398 Int/
—
Notes: 1982: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh · 1983: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh · 1991: Non Roller Applications~ 50 State Legal Hyd.; Off-Idle-5500rpm; Adv. Dur. 244deg. Int/264deg. Exh; Valve Lift 0.398 Int/ · 1992: Non Roller Applications~ 50 State Legal Hyd.; Off-Idle-5500rpm; Adv. Dur. 244deg. Int/264deg. Exh; Valve Lift 0.398 Int/
—
Notes: Non Roller Applications~ 50 State Legal Hyd.; Off-Idle-5500rpm; Adv. Dur. 244deg. Int/264deg. Exh; Valve Lift 0.398 Int/
—
Notes: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: 1989: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I · 1990: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I · 1991: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I · 1992: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I · 1993: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh
—
Notes: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh
—
Notes: Off-Idle to 5500rpm; Adv. Dur. at 0.050 Int/Exh 194/214 Deg; Lift at Valve Int/Exh 0.398/0.442 in.; Lobe Seps 112 Deg. I
—
Notes: Off-Idle to 5500rpm Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. Wh
+ 197 additional fitments not shown
