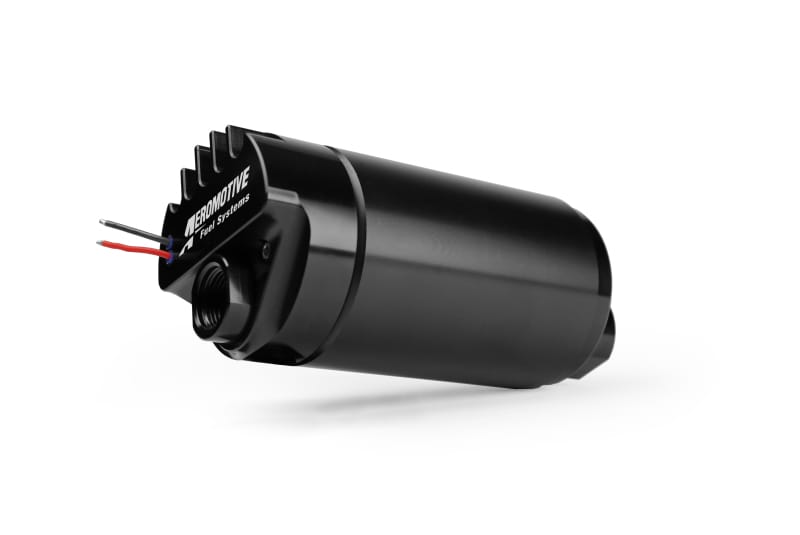

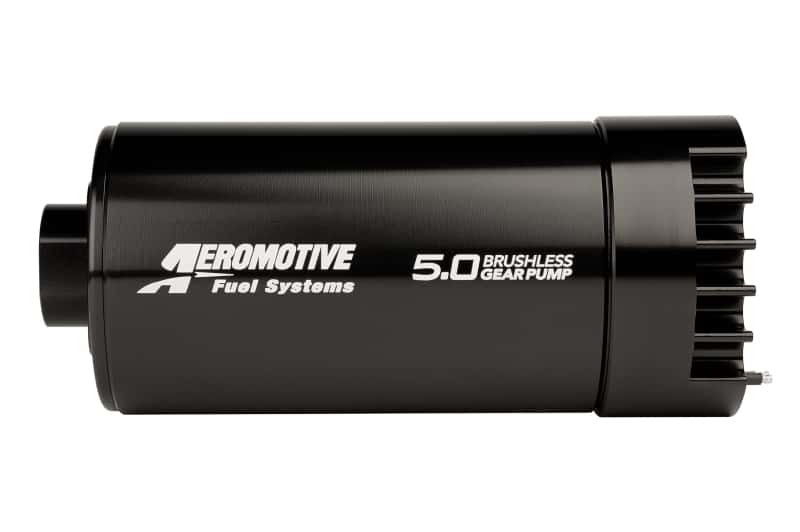

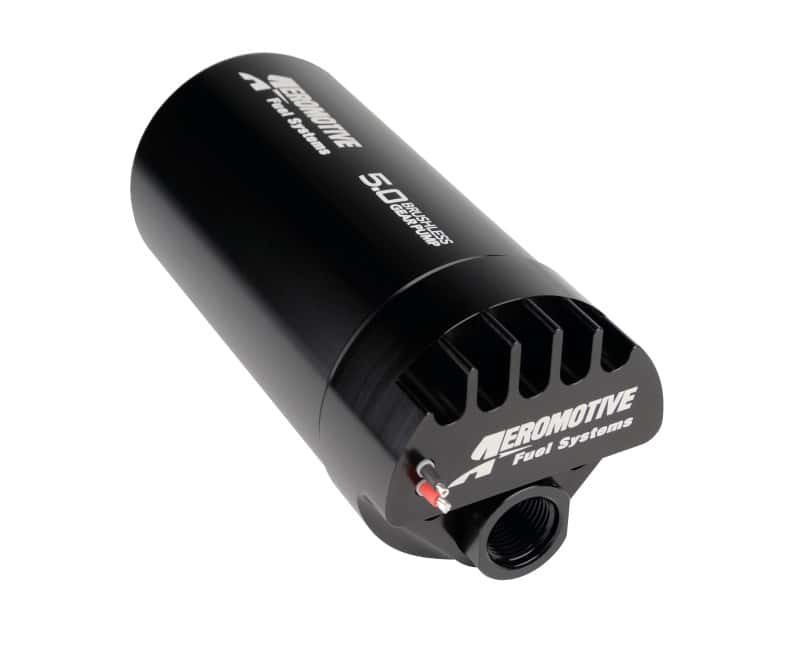

Aeromotive Brushless Pro+-Series Fuel Pump External In-Line

Overview

Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

Features

• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• Fuel injected engines: METHANOL up to 1,190 FWHP – naturally aspirated up to 910 FWHP – forced air induction
• Carbureted engines: METHANOL Up to 1,260 FWHP – naturally aspirated Up to 945 FWHP – forced air induction
• Fuel injected engines: GAS up to 3400 FWHP – naturally aspirated up to 2600 FWHP – forced air induction
• Fuel injected engines: E85 up to 2380 FWHP – naturally aspirated up to 1820 FWHP – forced air induction
• EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts
• Carbureted engines: GAS Up to 3600 FWHP – naturally aspirated Up to 2700 FWHP – forced air induction
• Carbureted engines: E85 Up to 2520 FWHP – naturally aspirated Up to 1890 FWHP – forced air induction
• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
• Not compatible with pulse modulated systems or fuel pump speed controllers.
• Lighter than the traditional external mount pumps.
• Requires straight 12-VDC to 16-VDC power supply.
• Reduced current draw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• New integral spur-gear pumping mechanism.
• ORB-12 inlet and ORB-10 outlet ports.
