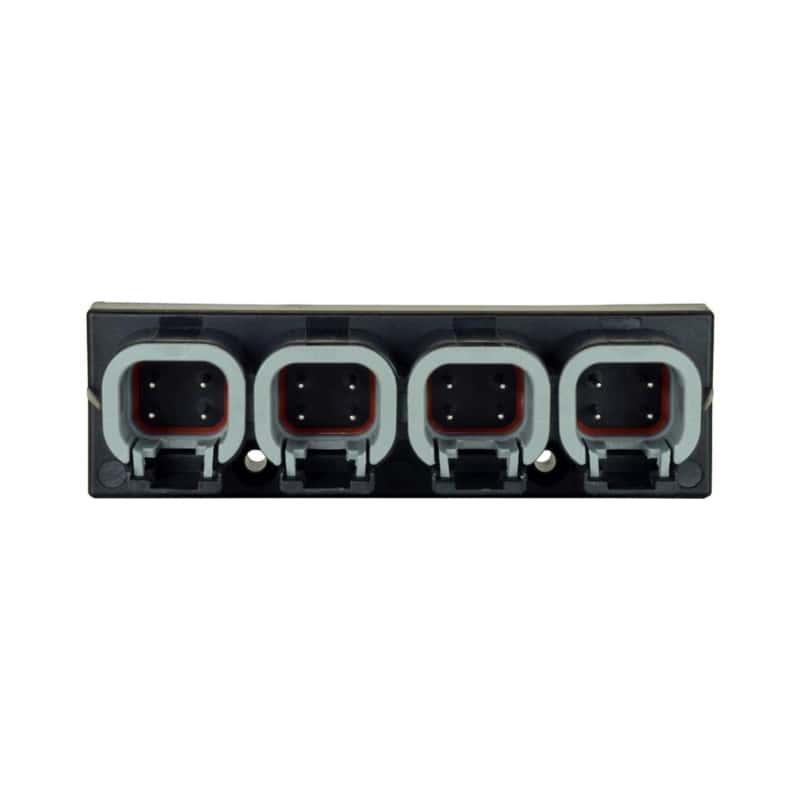

AEM 4 Port AEMnet Can Hub CAN Hub, 4 Port AEMnet CAN Hub
SKU: aem30-2225
AEM's 4 Port AEMnet CAN Hub is the perfect solution for connecting multiple AEMnet CAN bus-enabled devices together. This convenient Module provides a central docking station for four AEMnet cables via 4-way DTM-style housings and can provide power to all of the connected devices on the Hub through a single port (3A max current capacity - NOT for use to power UEGO sensor heaters). Users can daisy-chain two 4 Port...
Ships within 1-2 business days - free shipping
Overview
AEM's 4 Port AEMnet CAN Hub is the perfect solution for connecting multiple AEMnet CAN bus-enabled devices together. This convenient Module provides a central docking station for four AEMnet cables via 4-way DTM-style housings and can provide power to all of the connected devices on the Hub through a single port (3A max current capacity - NOT for use to power UEGO sensor heaters). Users can daisy-chain two 4 Port AEMnet CAN Hubs together for a total of 6 connected devices.
Features

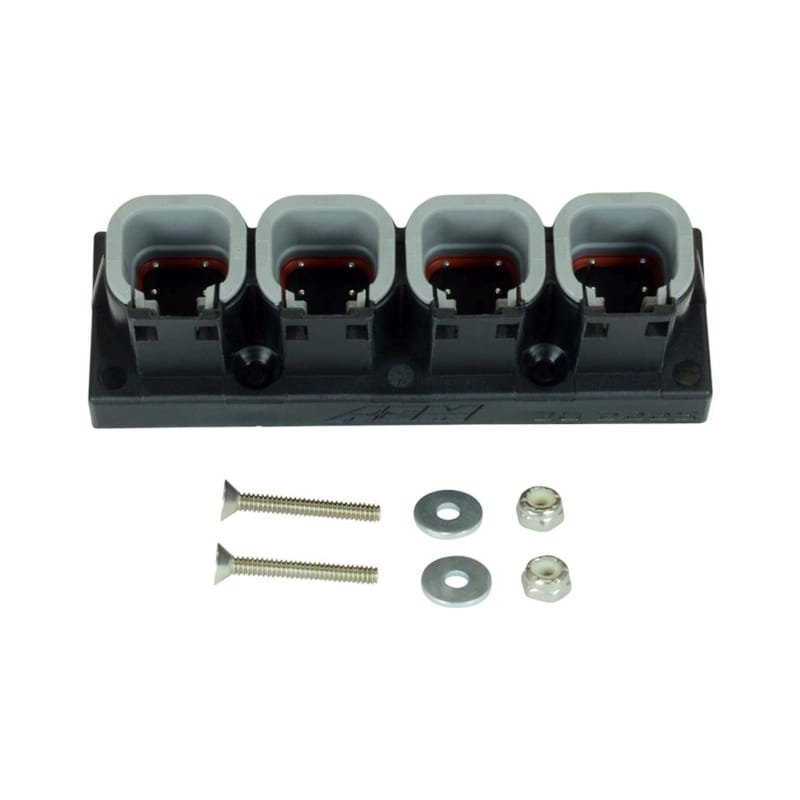

- Mounting hardware included (two 4-40 x 7/8" flat head screws, two 4-40 x 0.375" washers and two 4-4 x 9/64" Nylock nuts)
- Easily connect and power multiple AEMnet CAN devices from a central docking station!
- Four integrated 4-way DTM-style housings provide reliable AEMnet CAN connections
- Compact enclosure - 3.45" (87.63mm) Long x 1.18" (29.85mm) Tall
- Safe for engine bay mounting - IP67-rated enclosure
- Daisy chain two Hubs to connect six AEMnet Devices
