Cooling
CSF

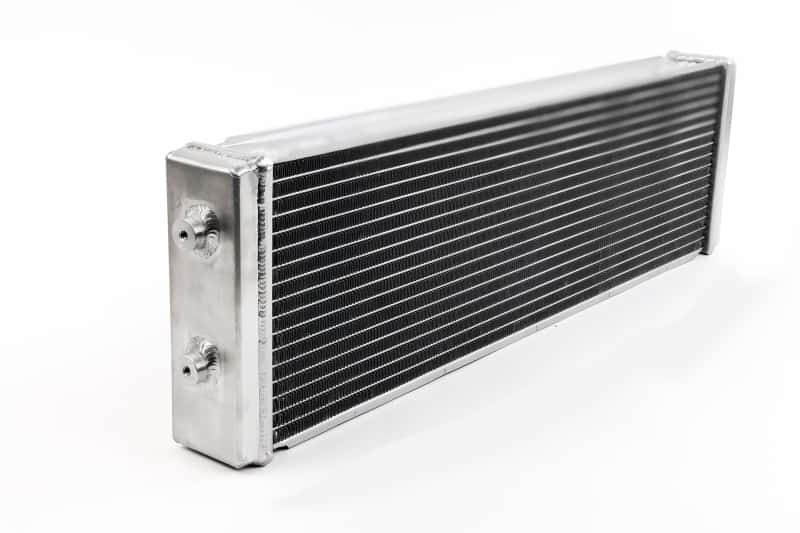

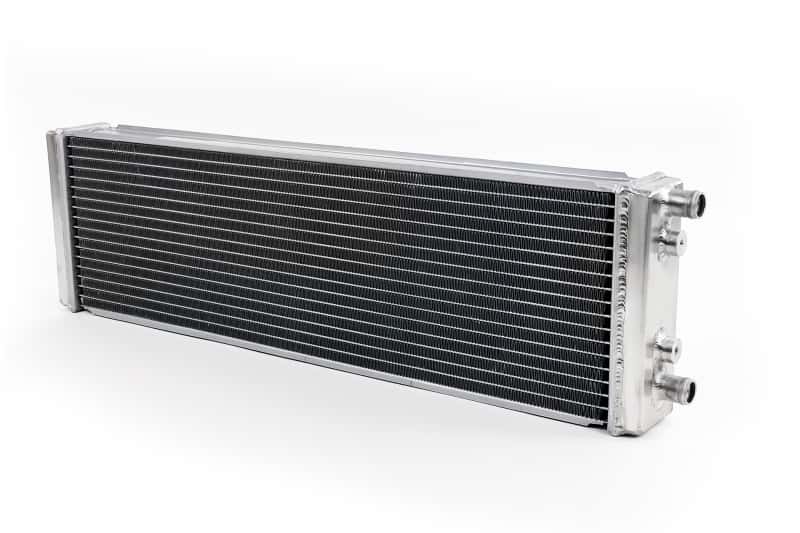

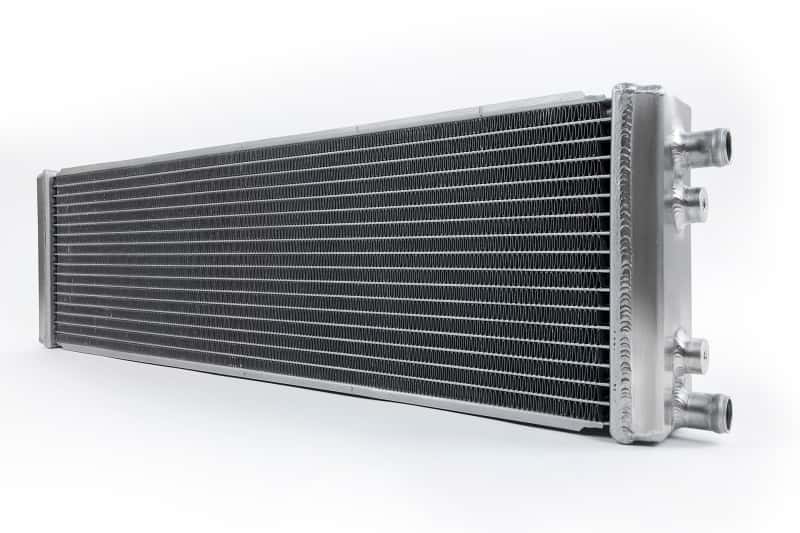

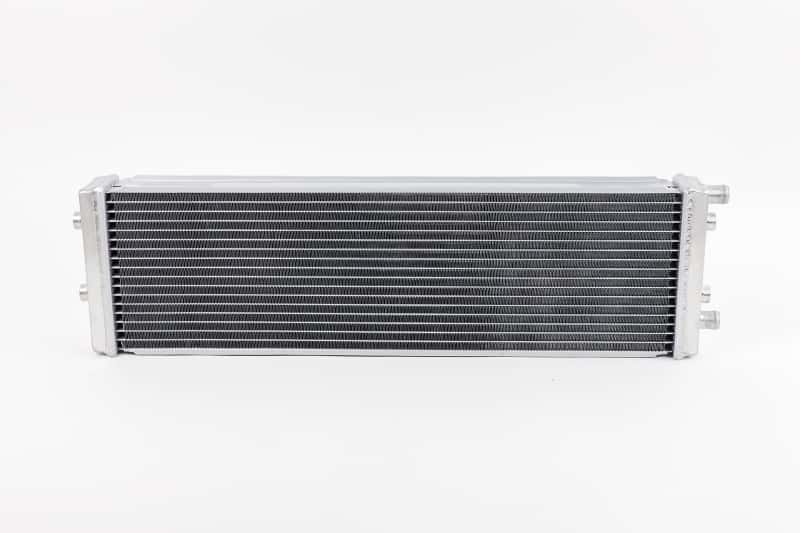

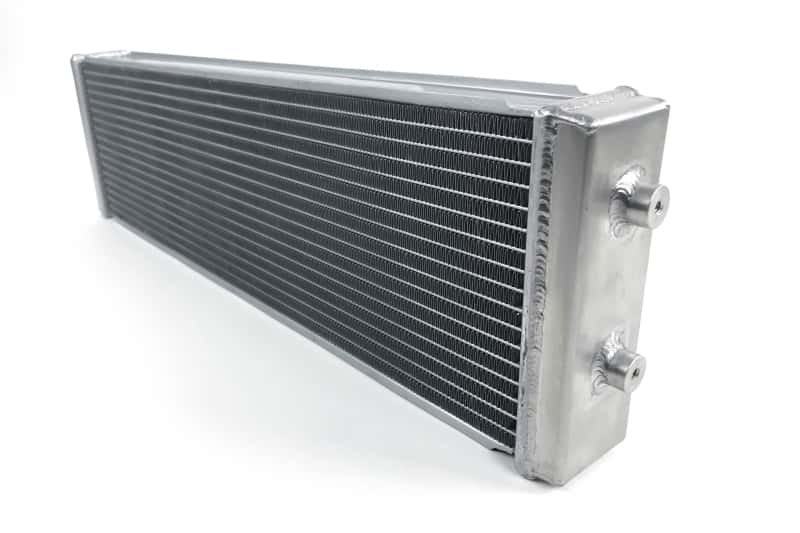

CSF Dual-Pass Universal Heat Exchanger (Cross-Flow) CSF Heat Exchanger
SKU: csf8030
$399.00$429.00Save 7%
8 In Stock
Ships within 1-2 business days — Free shipping over $199
Overview
The ultimate universal dual-pass cross flow heat exchanger is the ideal option for you custom project. This cooler can be used as an Air-to-Water Intercooler Heat Exchanger, Small Radiator, or Auxiliary Radiator. The dual 3/4 inch (19mm) slip on connections allow for easy fluid line connections. Can be mounted in any orientation.
Features
- All CSF High-Performance Radiators Undergo a Rigorous Testing Process During Development, Including Burst Pressure, Thermal Cycle, Vibration Testing, and Salt Spray Testing
- 6.5mm Tall Multi-Louvered Fins with CSF's Exclusive B-Tube Technology
- 100% All Aluminum TIG-Welded Construction
- 2-Row 42mm Ultra High-Performance Core

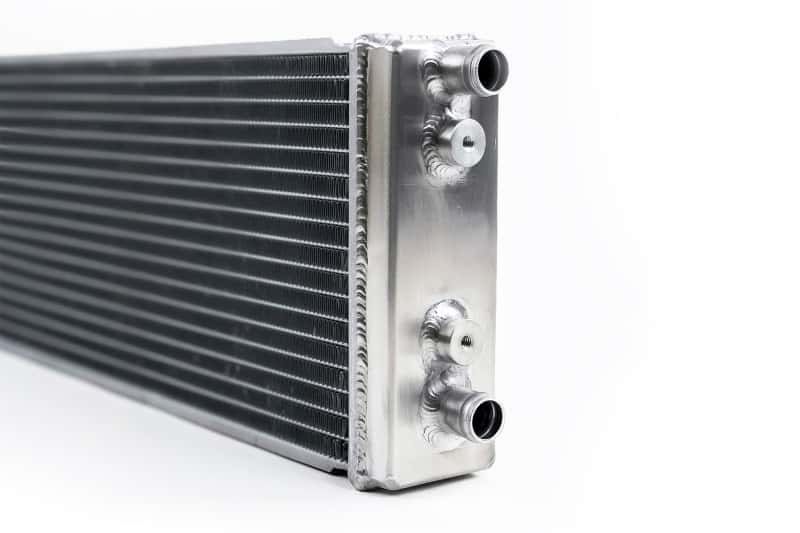

- 3/4" (19mm) slip-on connections
- CNC Machined Mounting Brackets
- Individually Leak Tested
- 2-Year Limited Warranty
- Smooth Satin Finish
Dual-Pass Cross Flow Heat Exchanger with 3/4" slip-on connections
