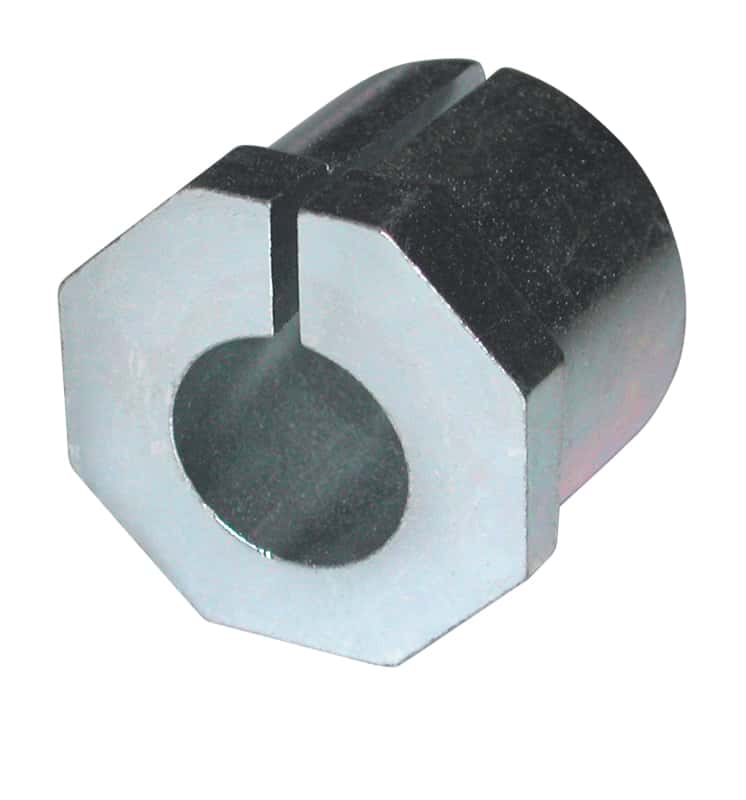

SPC Performance SET (9) 4X4 SLEEVES ALIGNMENT BUSHING KT ALIGN BUSHNG
SKU: spc23130
Change camber,caster or both at the same time with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Install a zero degree sleeve 23139 to determine the change needed ,then install the correct sleeve.To split camber and caster adjustment, rotate sleeve 45deg. Set 23130 contains 1...
Shipping ETA may vary. Call or message for specific timing.
Overview
Change camber,caster or both at the same time with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Install a zero degree sleeve 23139 to determine the change needed ,then install the correct sleeve.To split camber and caster adjustment, rotate sleeve 45deg. Set 23130 contains 1 each: 23131, 23132, 23133, 23134, 23135, 23136, 23137, 23138, 23139 California Residents WARNING
Features
- Front Adjustment Range: Camber/Caster ±0.25° to ±2.00°
- Easily change caster / camber or both at the same time
- Clear Zinc coating for corrosion resistance
- Kit includes an assortment of (9) sleeves
- Recommended Tools: 77880 - Sleeve Puller
- Sleeve Kit for popular 4x4 applications
- Required: 1 per wheel
- 23133: 0.75°
- 23134: 1.00°
- 23135: 1.25°
- 23136: 1.50°
- 23137: 1.75°
- 23138: 2.00°
- 23139: 0.00°
- 23131: 0.25°
- 23132: 0.50°
Installation (catalog file)
