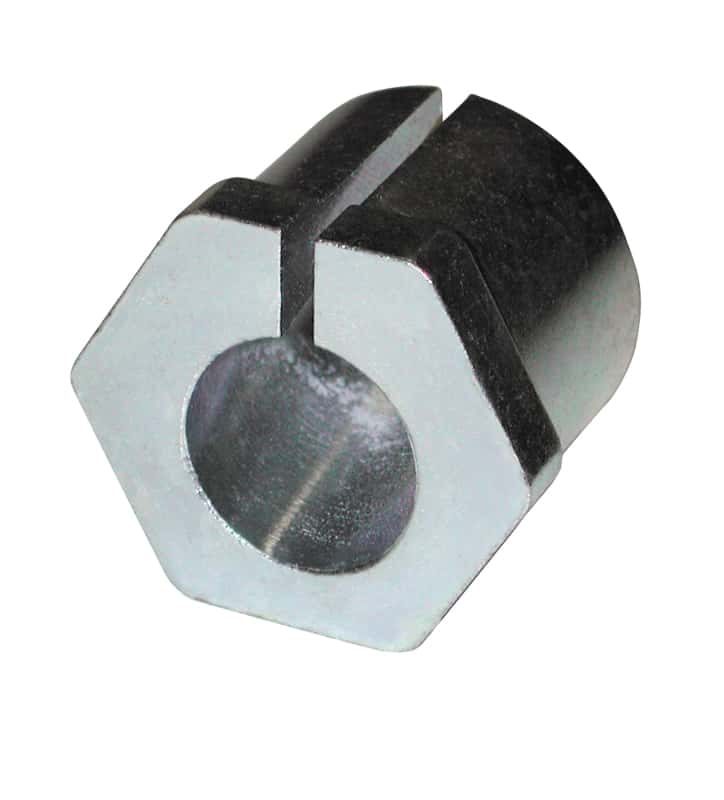

SPC Performance SET (9) Camber/Caster Sleeve ALIGNMENT BUSHING KT ALIGN BUSHNG

Overview

These popular sleeves are widely used to adjust caster and/ or camber on many Ford and Mazda RWD & 4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use 77880 or 88830 sleeve puller to remove the existing sleeve. To split camber and caster adjustment, rotate sleeve 45deg. Save time during alignment, use 23199 zero degree sleeve to determine initial readings, then install correct sleeve. Note: Sleeves adjust to a smaller degree on Ford andMazda 4WD light trucks/SUVS. Set 23180 contains 1 each: 23181,23182,23183,23184,23185,23186,23187,23188,23199 California Residents WARNING

Features

• Adjust camber and/or caster 0.25° to 3.5° for RWD and 0.20° to 2.75° for 4WD vehicles with additional series sleeves
• Easily adjust caster and/or camber on many Ford and Mazda RWD & 4WD trucks
• Front Adjustment Range: Camber/Caster ±0.25° to ±3.50°
• Kit includes an assortment of (9) sleeves
• Recommended Tools: 77880 - Sleeve Puller
• 23199: RWD 0.00° / 4WD 0.00°
• 23183: RWD 0.75° / 4WD 0.60°
• 23182: RWD 0.50° / 4WD 0.40°
• 23181: RWD 0.25° / 4WD 0.20°
• 23184: RWD 1.00° / 4WD 0.75°
• 23188: RWD 2.00° / 4WD 1.40°
• 23187: RWD 1.75° / 4WD 1.25°
• 23186: RWD 1.50° / 4WD 1.10°
• 23185: RWD 1.25° / 4WD 0.90°
• Required: 1 per wheel
