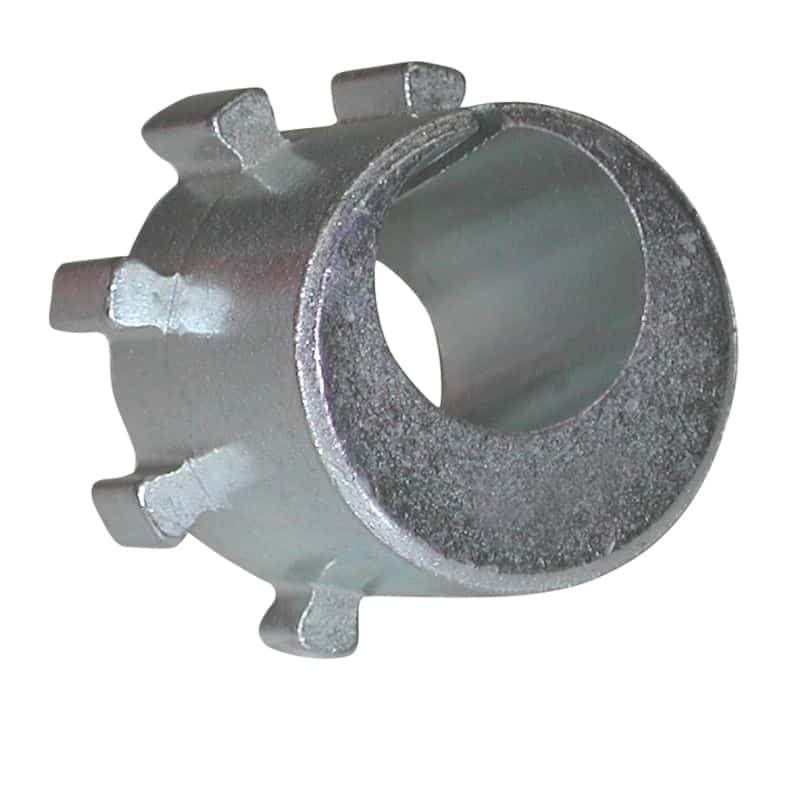

SPC Performance 1-1/4 deg. FORD Camber/Caster Sleeve ALIGNMENT BUSHING ALIGN BUSHNG
SKU: spc23105
This sleeve will easily change Camber and/or Caster 1.25° for vehicles equipped with twin traction beam DANA 44 axles. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve and install a zero-degree sleeve (23109) to determine the required change, then install the correct degree sleeve. To split camber...
Shipping ETA may vary. Call or message for specific timing.
Overview
This sleeve will easily change Camber and/or Caster 1.25° for vehicles equipped with twin traction beam DANA 44 axles. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve and install a zero-degree sleeve (23109) to determine the required change, then install the correct degree sleeve. To split camber and caster adjustment, rotate sleeve 45°.
Features
- Easily change caster / camber or both at the same time
- Front Adjustment Range: Camber/Caster ±1.25°
- Clear Zinc coating for corrosion resistance
- Recommended Tools: 77880 - Sleeve Puller
- Required: 1 per wheel
Installation (catalog file)
