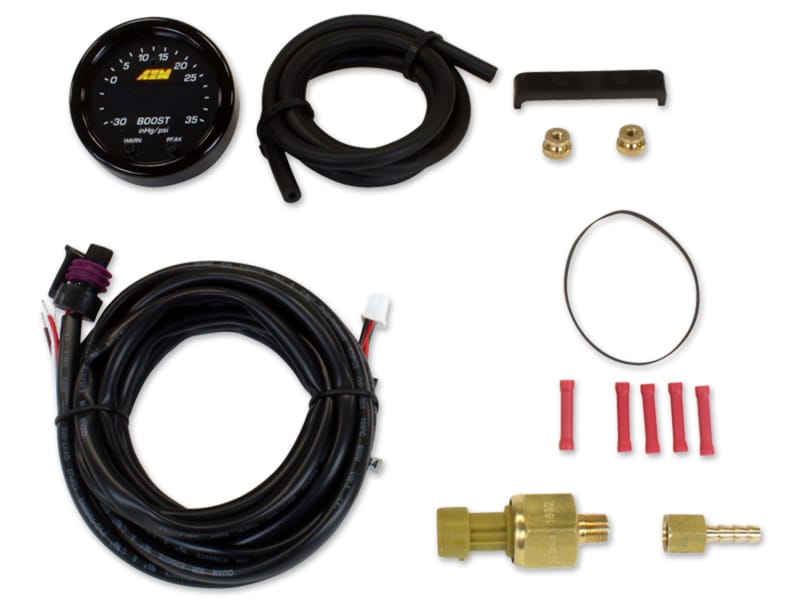

AEM X-Series Boost Pressure -30inHg 60psi Gauge Kit X-Series Gauge X-Series Boost

Overview

X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.

Features

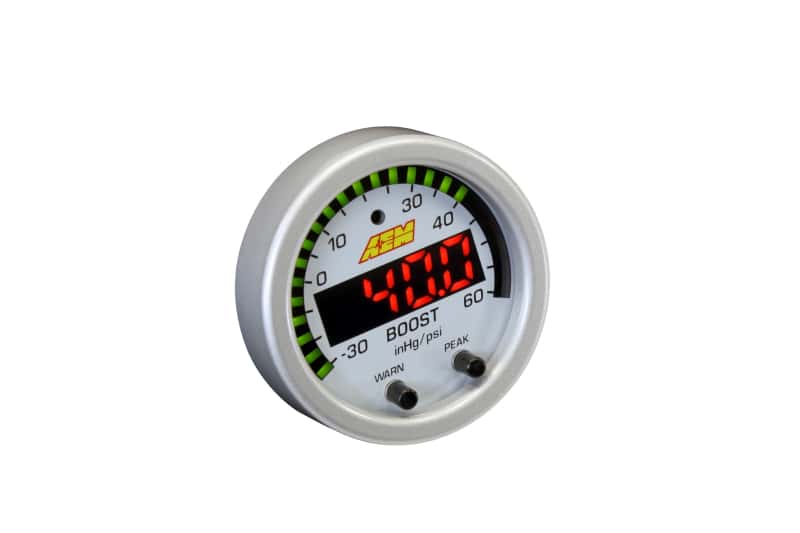

• Optional silver bezel with white faceplate(s) accessory kits available (sold separately)
• Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!

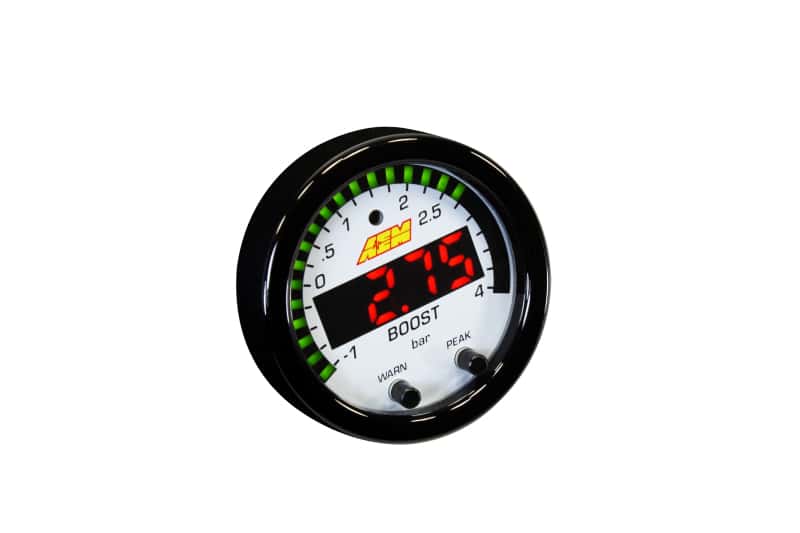

• User selectable standard or metric display ( -30in/Hg~60PSI / -1~4BAR)
• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
• 0-5v analog outputs for transmitting data to EMS or Data Logger
• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• Programmable center LED is 87% larger than original AEM gauges
• 24 green outer LEDs for quick reference to engine parameter
• Auto dimming sensor delivers ideal display brightness
• Positive locking connectors provide secure connection
• User selectable threshold warnings (excl. Volts)
• Peak/Recall via gauge face buttons
