AEM X-Series AEMnet Can Bus Gauge Kit X-Series AEMnet Can X-Series AEMnet

Overview

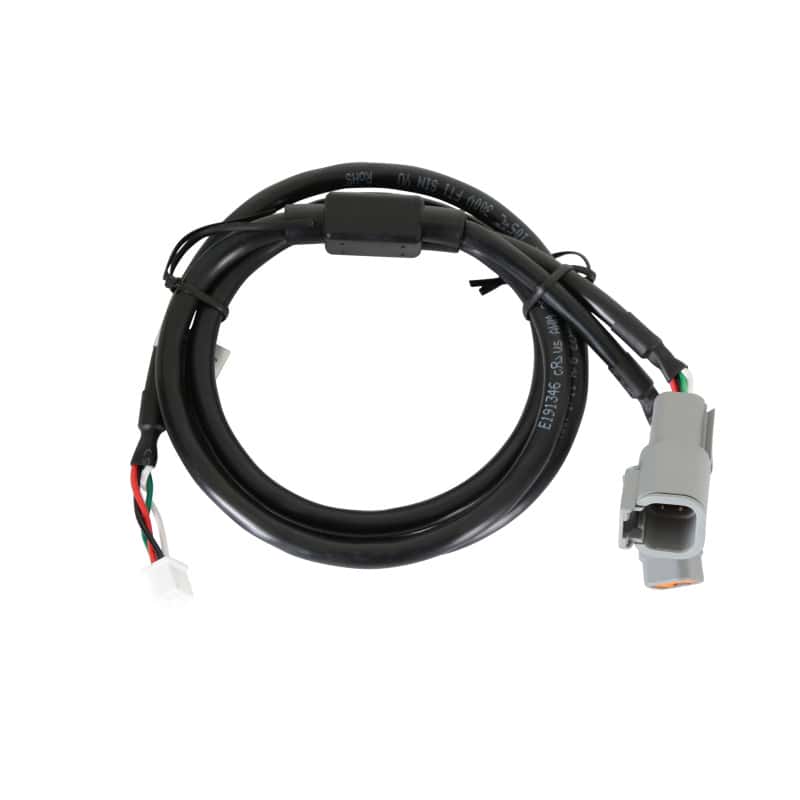

The AEMnet CAN bus gauge connects to AEMnet-equipped devices through a 4-pin DTM connector and displays data in either US or Metric units. View multiple data channels from an Infinity ECU, Series 2 or EMS-4 standalone, view AFR or Lambda from X-Series Wideband Controllers or 4-Channel Wideband Controllers, or view vehicle speed and acceleration from a Vehicle Dynamics Module (see available Channels List). Users can program which available channels they want to see on the display, choose between displaying Lambda or AFR and clear peak values for channels by using the buttons on the faceplate.

Features

• Optional silver bezel with white faceplate accessory kit available (sold separately, PN 20-0312-ACC)
• Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
• Choose which available channels you want to see using buttons on the faceplate
• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• Clear peak values for channels using buttons on the faceplate
• 24 green outer LEDs for quick reference to engine parameter
• Auto-hides channels that aren't present on the data stream
• Reads data channels from AEMnet CAN bus-equipped devices!
• User selectable wideband measurements (AFR or Lambda)
• Auto dimming sensor delivers ideal display brightness
• Positive locking connector provides secure connection
• User selectable units of measurement (US or Metric)
• Compatible with 16v vehicle systems
