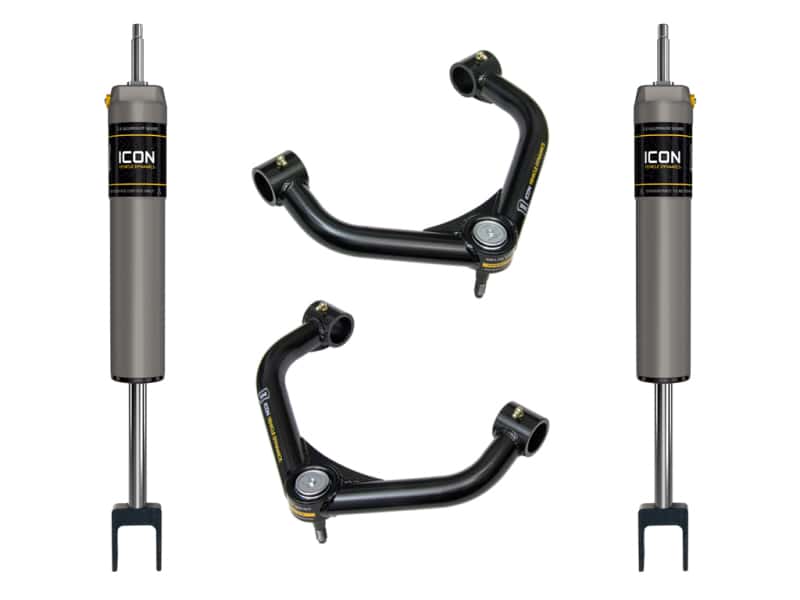

ICON 11-19 GM HD 0-1in 2.5 IR Shock System w/Upper Control Arm GM HD UCA/SHOCK KIT
SKU: ico78722
These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired...
Shipping ETA may vary. Call or message for specific timing.
Overview
These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Features

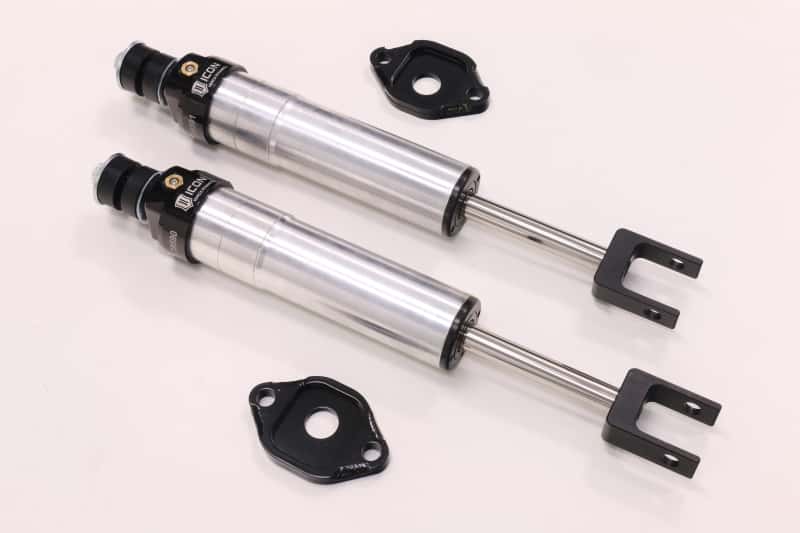

- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
- PTFE lined spherical bearings and application specific mounting hardware
- 7/8" diameter induction hardened, chrome plated shock shaft
- Nitrogen charged monotube design with internal reservoir
- 6061 aircraft grade aluminum CNC machined components
- CNC Machined Bushing Housings and Sleeves
- Black Semi-Gloss Powder Coat Finish
- Serviceable Dual Stage Bushings
- 1026 DOM Steel Construction
- Built-In Caster Correction
- 100% Revalveable
- ICON Delta Joint
- 100% Rebuildable
- CNC Bent Tubing
