Autometer #4 Braided SS Line (-4AN) 4ft 3/16in ID Fittings Hose Ptfe Sst 4 -4

Overview

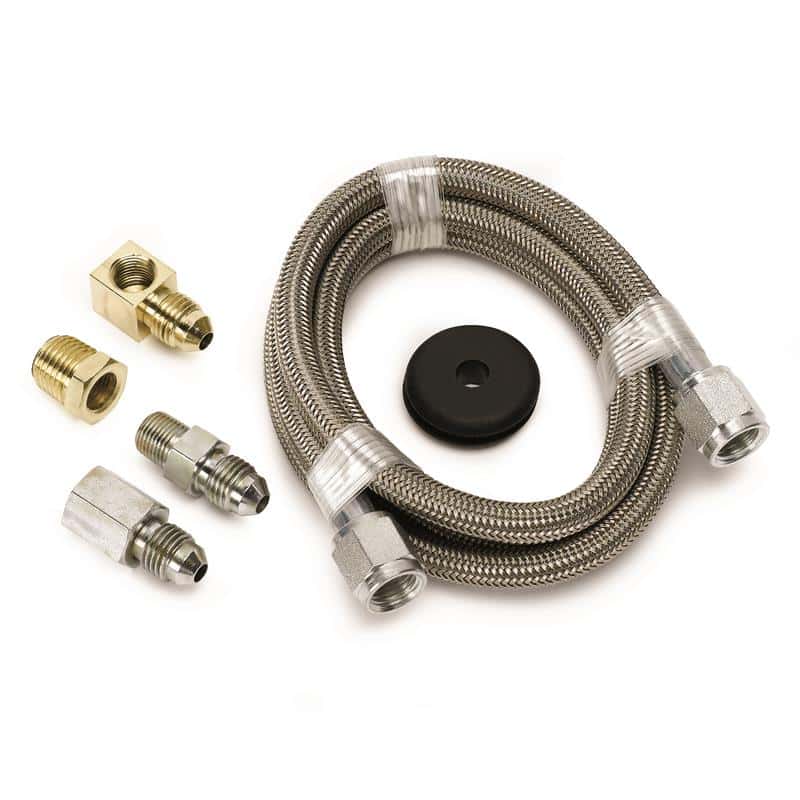

Includes 4ft. of #4 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -4AN male fitting, -4AN male to 1/8" NPT male fitting, -4AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.

Features

• Includes 1/8" NPT male to -4AN female straight, 1/8" FPT Female to -4AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -4AN to 1/8" NPT female 90 degree fittings
• -65 Degrees F to 450 Degrees F Operating Temperature Range
• PTFE lined hose, resistant to most fluids
• Maximum Operating Pressure - 3000 PSI
• Burst Pressure - 12,000 PSI
• Type 304 Stainless braid
