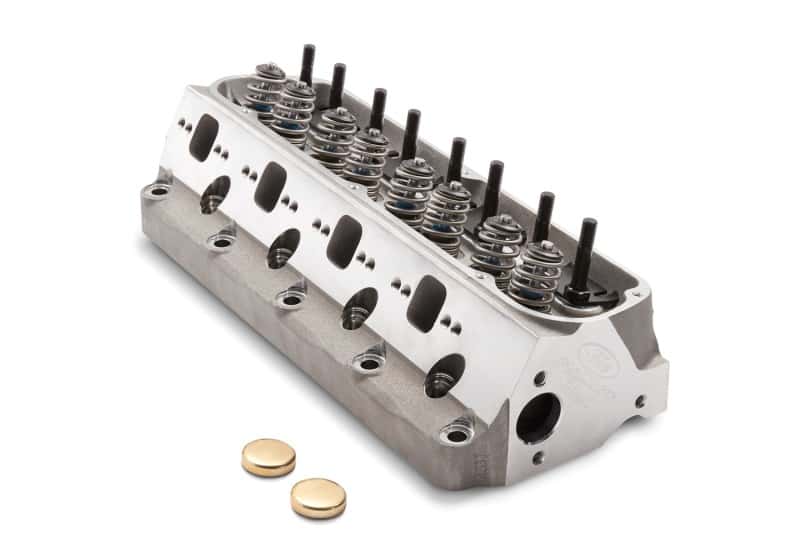

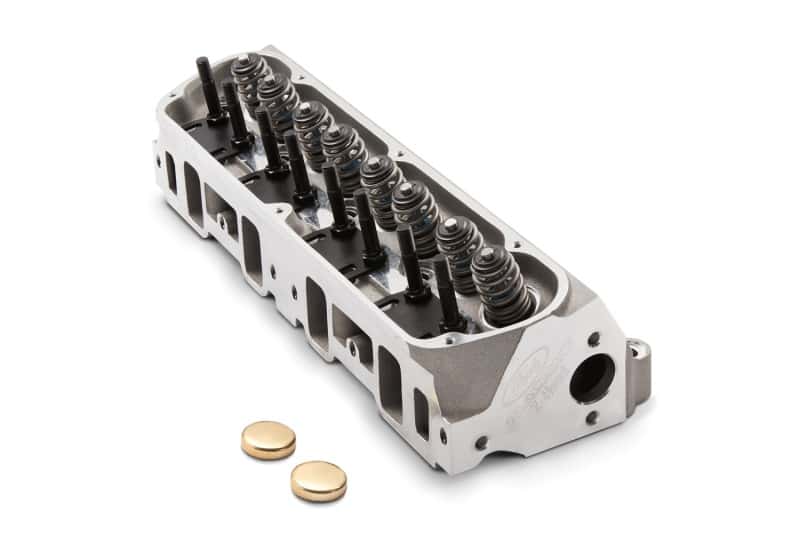

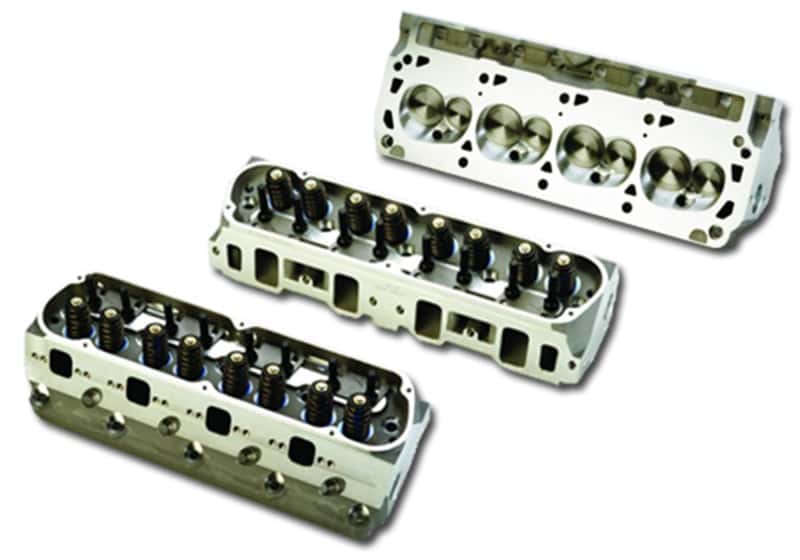

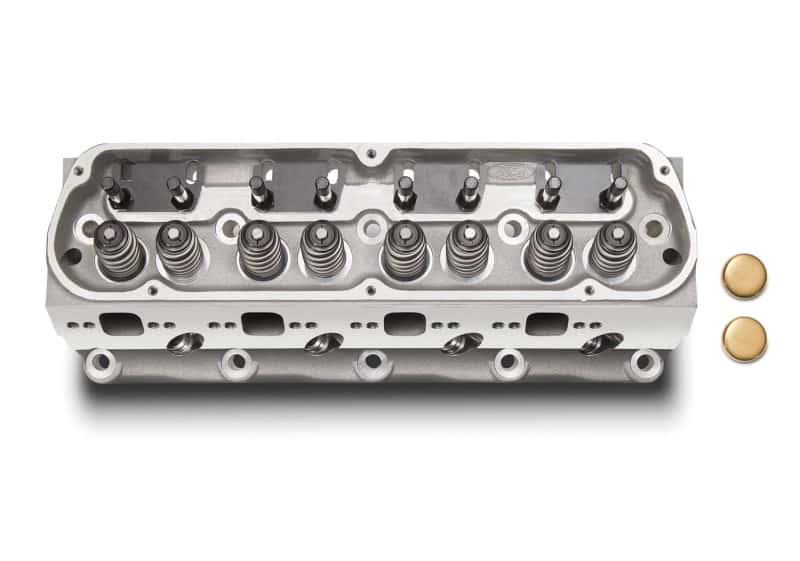

Ford Racing 302/351W Z-Head Aluminum - Assembled 63CC
SKU: frpM-6049-Z304DA
Cast from prime A356 T6 aluminum, these 'Z' heads from Ford Racing were designed using solid modeling technology. They feature high-flow ports and steel alloy intake and exhaust valve seats installed (they do require a competition valve job and bowl blending). The manganese-bronze valve guides are installed with a semi-finished I.D. and the combustion chambers are CNC-machined. Laser-cut guideplates are included,...
Shipping ETA may vary. Call or message for specific timing.
Overview
Cast from prime A356 T6 aluminum, these 'Z' heads from Ford Racing were designed using solid modeling technology. They feature high-flow ports and steel alloy intake and exhaust valve seats installed (they do require a competition valve job and bowl blending). The manganese-bronze valve guides are installed with a semi-finished I.D. and the combustion chambers are CNC-machined. Laser-cut guideplates are included, and they accept both tapered seat and gasket-style 14mm spark plugs.
Features
- 145 lbs. 1.80 in. Valve Spring Closed Pressure
- 358 lbs. 1.175 in. Valve Spring Open Pressure
- Steel Alloy Intake/Exhaust Valve Seats
- 85cc Exhaust Port Volume As Cast
- 204cc Intake Port Volume As Cast
- Heads are Cast w/High Flow Ports
- Cast From Prime A356 T6 Aluminum
- Manganese-Bronze Valve Guides

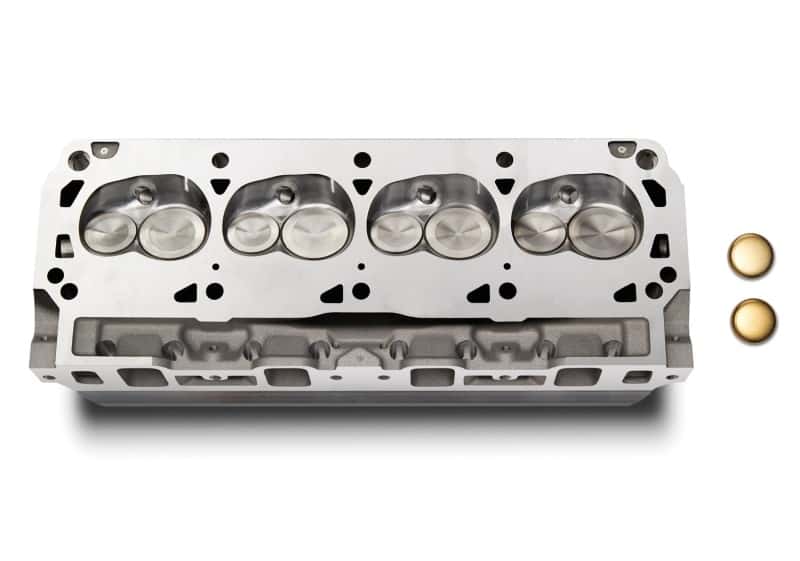

- 63cc CNCd Combustion Chamber
- 20 Degree Inline Valves
- Made in the USA
Installation (catalog file)
