Grams Performance

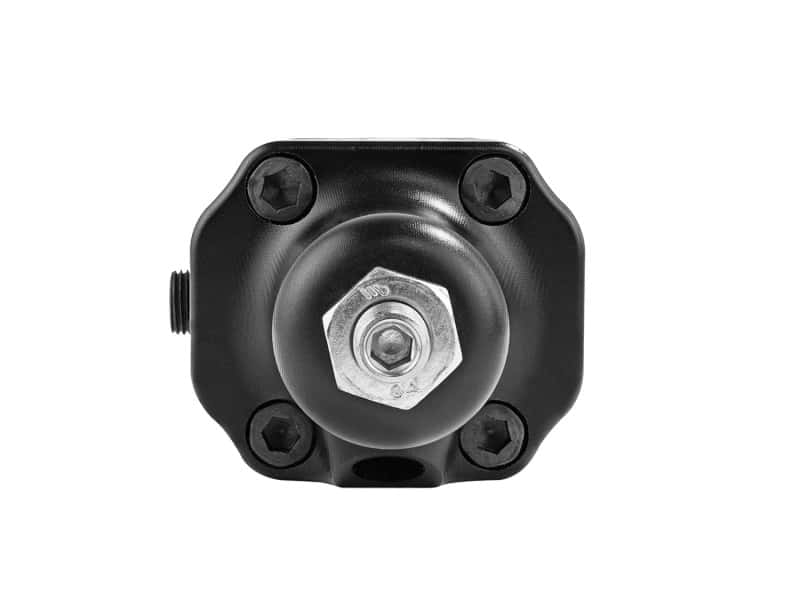

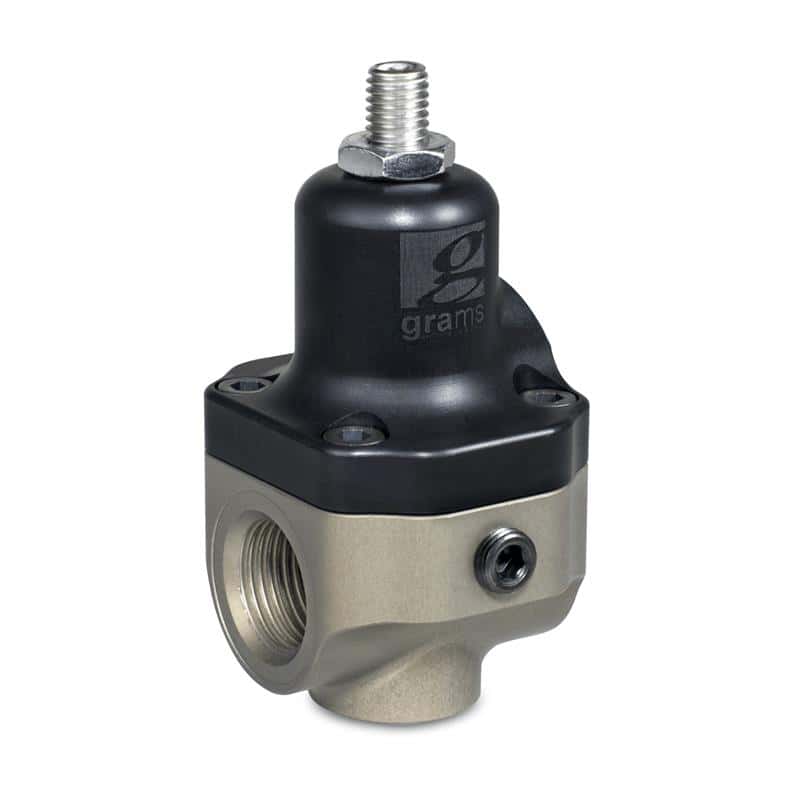

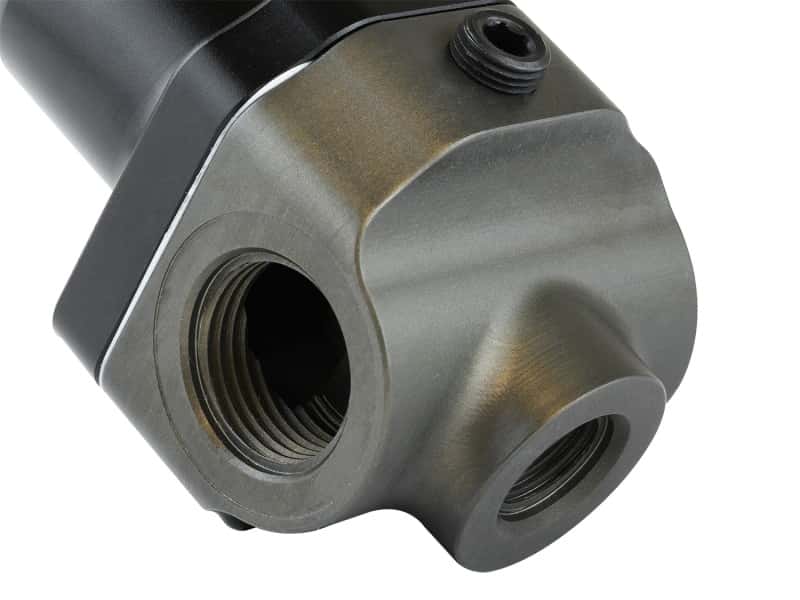

Grams Performance 35-115 PSI Fuel Pressure Regulator FuelInjPresrRgultr
SKU: grpG60-99-0000
Control your fuel system with the Grams Performance fuel pressure regulator. These regulators feature a black anodized top and high quality 6061 hard anodized aluminum bottom. At the heart of the regulator is a durable custom diaphragm, a stainless steel internal orifice, and a high pressure spring that allows for pressure adjustment ranging from 30 - 118 psi (2 – 8 bar). Each regulator features two AN -10 ORB...
Shipping ETA may vary. Call or message for specific timing.
Overview
Control your fuel system with the Grams Performance fuel pressure regulator. These regulators feature a black anodized top and high quality 6061 hard anodized aluminum bottom. At the heart of the regulator is a durable custom diaphragm, a stainless steel internal orifice, and a high pressure spring that allows for pressure adjustment ranging from 30 - 118 psi (2 – 8 bar). Each regulator features two AN -10 ORB inlets, one AN -06 ORB outlet, boost/vacuum port, gauge port and provisions for a mounting bracket. DID YOU KNOW? Grams Performance regulators are designed with simplicity and practicality in mind: a hard anodized aluminum bottom allows for all fuels types to flow freely through diaphragm.
Features
- 1/8 in. - 3.175mm NPT Boost/Vacuum Port
- Compatible With All Fuel Types
- M6x1.0 Mounting Location Size
- One Outlet/Return at -06 ORB
- 30 - 118 PSI Pressure Range
- 1:1 Boost/Vacuum Rise Ratio
- 6061 Hard Anodized Aluminum
- Two Inlets At AN-10 ORB
- Rebuildable Internal
- Black Anodized Top
