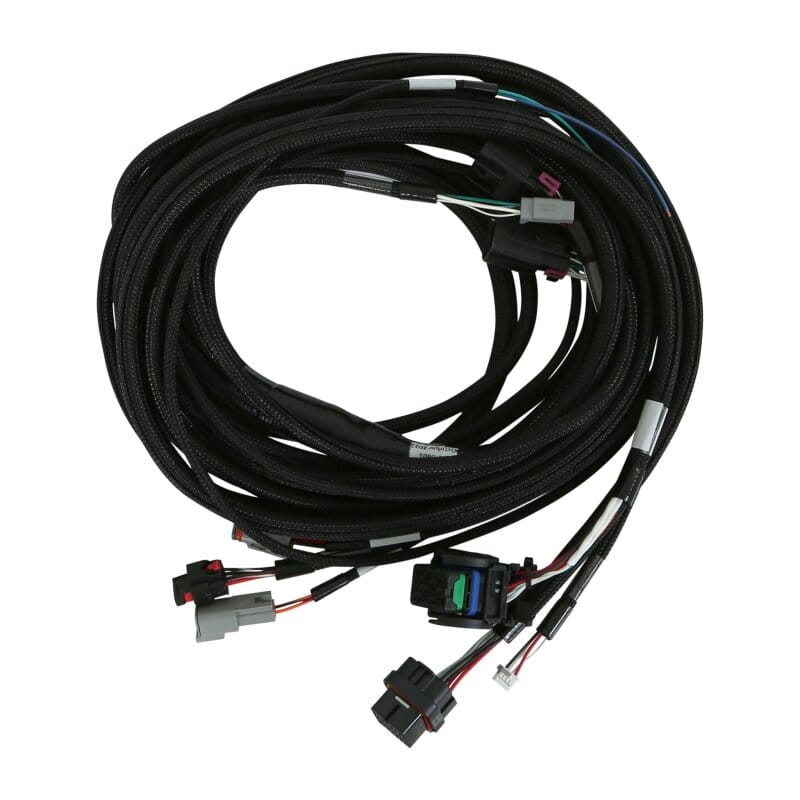

AEM VCU Universal LV Rear Harness Rear Low Voltage VCU

Overview

This low voltage harness assembly was designed to be installed in the rear half of the electric vehicle. It was designed to be used with a mating front half assembly that is VCU hardware specific. The AEM part number for the mating front half harness is 30-8600.

Features

• - Life Energy Motion (LEM) - current voltage DHAB s/124 Transducer Sensor
• Isabellenhutte (IVTS) - current voltage shunt based measuring system
• J1772 Flying Leads - Proximity Pilot (PROX) and Control Pilot (CP)
• Inverter High-Voltage Interlock (HVIL)
• Connector interface features include:
• Power Distribution Unit (PDU)
• Combined Charging Unit (CCU)
• Inverter Power (INV PWR)
• Inverter CAN (INV CAN)
• Inline Signals
• Inline CAN
