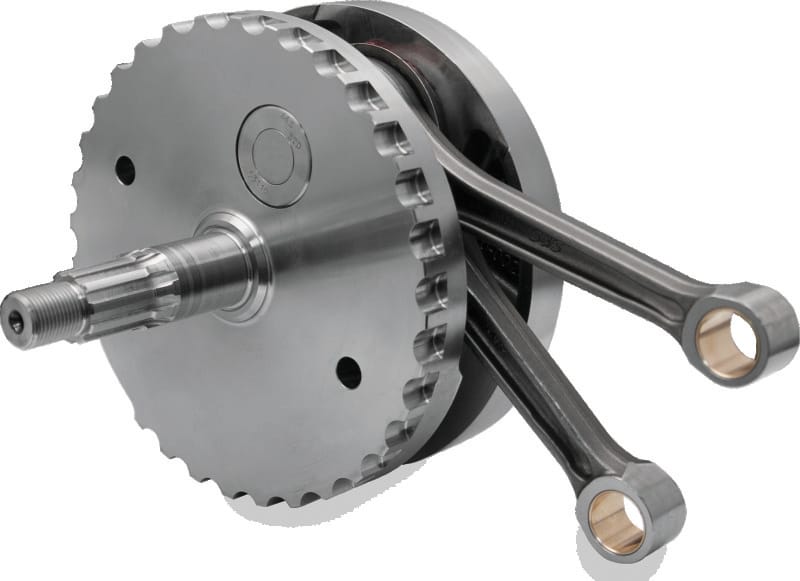

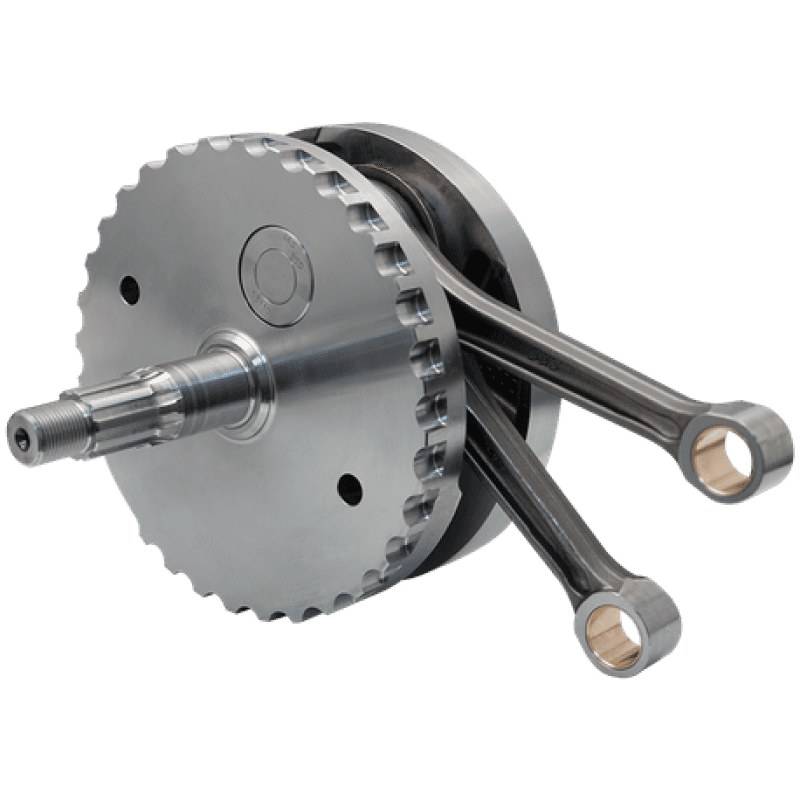

S&S Cycle 2007+ BT 4-5/8in Stroke Flywheel Assembly w/o Sprocket Shaft Bearing Race
SKU: ssc320-0464
This 4-5/8" stroke 8-1/2" diameter flywheel assembly replaces the original flywheels in S&S® T124 T2 engines, and fits 2006 HD® Dyna models and all 2007-'16 big twin models as part of an S&S® 124" Hot Set Up Kit®. Sprocket shaft does not have a stock style bearing race pressed on. This three piece design flywheel assembly is for crankcases with Timken® sprocket shaft bearing. Assembly is trued to less than .0005"...
Shipping ETA may vary. Call or message for specific timing.
Overview
This 4-5/8" stroke 8-1/2" diameter flywheel assembly replaces the original flywheels in S&S® T124 T2 engines, and fits 2006 HD® Dyna models and all 2007-'16 big twin models as part of an S&S® 124" Hot Set Up Kit®. Sprocket shaft does not have a stock style bearing race pressed on. This three piece design flywheel assembly is for crankcases with Timken® sprocket shaft bearing. Assembly is trued to less than .0005" runout on pinion and sprocket shaft bearing surfaces, making them capable of higher rpm and fully compatible with gear drive cams.
Features
- Flywheels are CNC machined from heat-treated, closed die, steel forgings, which are 114 percent stronger than late style stock steel flywheels
- Fully assembled with premium quaility S&S® heavy duty 7.667" connecting rods, with full width wrist pin ends, and dynamically balanced
- The only joints in the assembly are where the 1.671" diameter connecting rod crankpin is pressed into the flywheels
- Pinion and sprocket shafts are forged as part of the flywheel
