S&S Cycle — S&S Cycle 78-84 BT H-Grind Camshaft
1 / 2
Camshafts

S&S Cycle

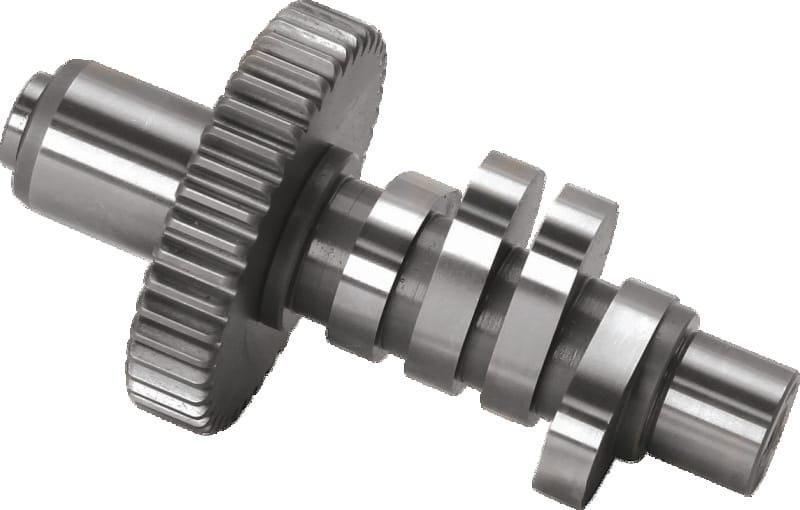

S&S Cycle 78-84 BT H-Grind Camshaft

SKU: ssc330-0166

Service part for shovelhead engines. This grind is a dead-on reproduction of the stock cams used in 1978 to 1984 big twins. Perfect for repair and restoration of 74" and 80" engines. Available for generator engines with inner cam bushings or inner cam bearings, and for early and late alternator engines with different cam gear pitch diameters.

$255.95
Can Ship - ETA Varies

Shipping ETA may vary. Call or message for specific timing.

Contact sales for purchase

Overview

Service part for shovelhead engines. This grind is a dead-on reproduction of the stock cams used in 1978 to 1984 big twins. Perfect for repair and restoration of 74" and 80" engines. Available for generator engines with inner cam bushings or inner cam bearings, and for early and late alternator engines with different cam gear pitch diameters.

Features

  • Note that the front and rear cylinders have unique timing specs
Lift at TDC: .076º/.131º Front, .076º/.131º Rear; Lifters: Hydraulic; Spring Spacing Required: No Bolt-In; Timing Intake:0º/40º Front, 20º/33º Rear; Timing Exhaust: 53º/12º Front, 53º/12º Rear; Type: H-Grind; Valve Duration: 220º/245º Front, 233º/245º Rear; Valve Lift: .389º Front, .391º Rear
